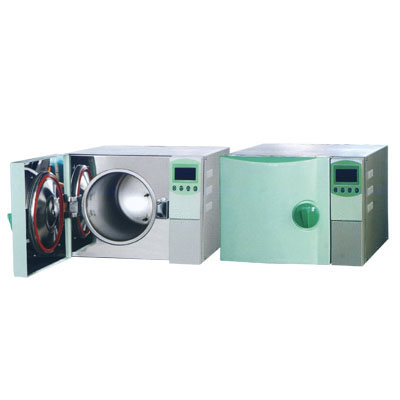

     Tabletop Steam Autoclaves    22L
CLASS B-ELAINE-22

At present,the fractionated vacuum is the most advanced and safe system for the elimination of air pockets.Thanks to the different phase of vacuum alternated to the compression phase,the air pockets both in the sterilization chamber and in the hollow and porous tools are expelled and the validity of the sterilization cycle is so guaranteed.On completion of the selected sterilizing program,also,Elaine automatic,pulsed,vacuum assisted drying phase to ensure instruments perfectly dry.

Specifications
Chamber Capacity 22 Liters
Overall product width 530mm
Overall product height 430mm
Overall product length 650mm
Net weight 55KG
Chamber diameter Width ¦Õ250mm depth 450mm
Tray capacity/length 4x370mm
Max instrument load-Vacuum 2.5kg(porous)
2.5kg(porous)
4.5kg(unpouched)
Sterilizing cycle(mins) 135oC/4mins
135oC/18mins
122oC/15mins
Operating pressure(mins) 1.2/2.2Bar
Voltage/Wattage 220V/2100W
Frequency 50/60HZ
The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
