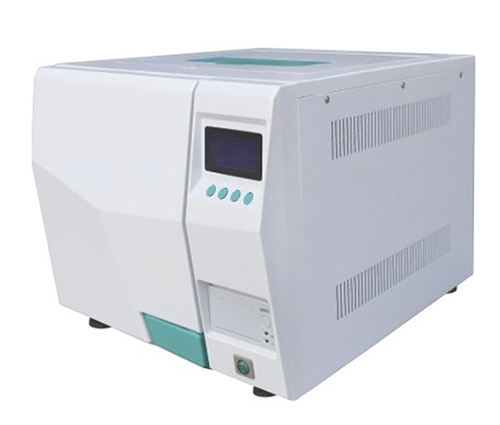

The table type sterilizers are safely auto controlled, which are designed for the dental clinics, hospitals, school labs, scientific research institutions and laboratories. And most suitable for sterilizing surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.





• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instruments less than 0.2%.

• LCD display working status, touch keys.

• The vacuum data can reach -0.8bar, it fits various instruments, including package, unpackaged, solid, hollow, multi-apertures and inset pipes. It makes sure the instrument can be sterilized completely.

• Fully computer-controlled LCD display bright shows. The interface is a modularized panel for easy operation.

• It is installed with BOWIE&DICK which measures the penetration of water steam.

• It has a vacuum test which can make sure the ability of vacuum testing.

• Fast and independent steam generator.

• Built-in mini printer which can record the sterilizing information.

• Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.

• It inactivates HIV, HBV, BSE, and bacillus efficiently.

• This product is designed for open water tank, water purification, sewage tank separation, convenient and intuitive.

• This product is designed for open water tank, water purification, sewage tank separation, convenient and intuitive.

• The cycle cannot be started if the door is not sealed. Once the cycle is started and running, the sealed door is locked and cannot be opened to ensure operational safety.





Technical Data    /  Model	YF-TM-20DV	YF-TM-24DV
Sterilizing chamber volume	18L  Ø250×360mm	23L  Ø250×470mm
Design pressure	0.3MPa
Design temperature	150℃
Max. working pressure	0.25MPa
Max. working temperature	138℃
Timer range	0～99min
Heater average	≤±1℃
Power	AC220V 50Hz 2KW
Inner dimension	480×680×455mm	480×680×455mm
Package dimension	580×790×580mm	580×790×580mm
G.N. / N.W. (kg)	56/47Kg	57/53Kg
