Scope of Application
They are digital ultrasonic cleaners, which are mainly used for the special utensils cleaning and pretreatment of the analysis sample, crushing, emulsification, dispersion, dissolution, extraction, degas, acceleration of chemical reaction, nanometer preparation in the industries of laboratory, medical decontamination, biochemistry, microbiology, pharmacology, physics, zoology, agriculture, food, pharmaceutical, precision optics instruments, semiconductor material and others. And they are also applied to the high cleanliness of the precision parts cleaning.
Features

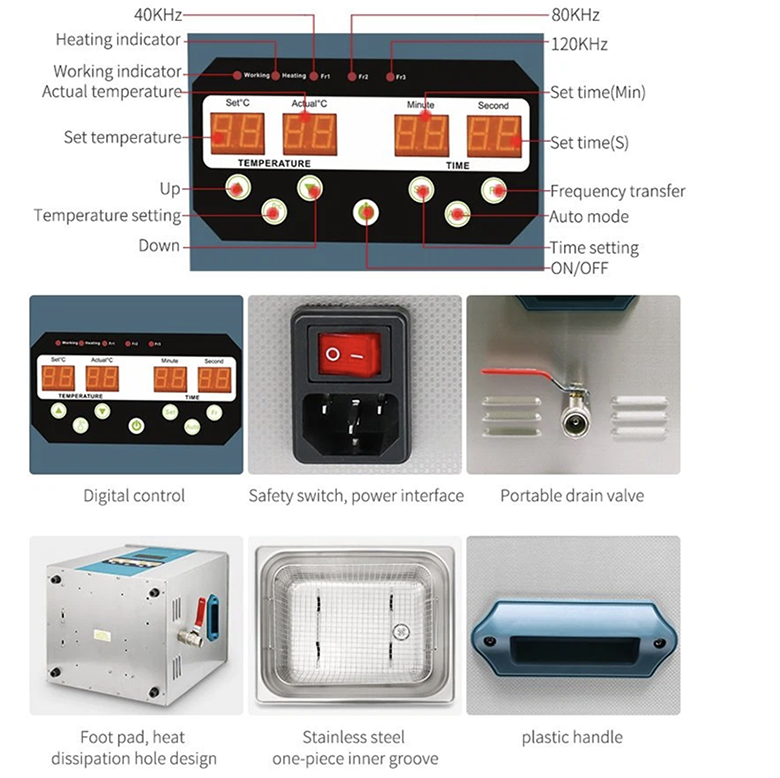

# Digital display and control.
# No-stud welding technology, stronger ultrasonic wave cleaning performance and long service life of tank.
# All stainless steel material, inner tank is made by punching SUS304 1.0mm, good corrosion resistance.
# MCU-SWEEP multi-frequency ultrasonic generator output, frequency sweep drive, ultrasonic cleaning effect more powerful. All the modes can be automatically/manually switched.
# MCH heating system, maximum temperature up to 80°C.
# Whole machine noise reduction processing.
# Digital cleaning timing within 1-30mins.
# 2500V high voltage test ensure the product safety.
Technical parameters
Model |
Capacity (L) |
Frequency Working (KHz) |
Ultrasonic Power (W) |
Heating Power (W) |
Timing time (mins) |
Noise reduction cover |
Valve drain |
Temperature range (°C) |
Washing basket |
Inner Tanker dimension (mm) |
Packing dimension (mm) |
Gross weight (Kg) |
UC-3240L |
11 |
28/40KHz or 40/80KHz or 40/80/120KHz |
240 |
300 |
1-30 |
YES |
YES |
0-80 |
Standard |
300X240X150 |
412X357X380 |
9.5 |
UC-3360 |
15 |
28/40KHz or 40/80KHz or 40/80/120KHz |
360 |
400 |
330X300X150 |
472X437X420 |
12 |
UC-3360L |
20 |
28/40KHz or 40/80KHz or 40/80/120KHz |
360 |
400 |
330X300X200 |
472X437X470 |
14 |
UC-3480 |
22 |
28/40KHz or 40/80KHz or 40/80/120KHz |
480 |
400 |
500X300X150 |
657X454X430 |
15.5 |
UC-3600 |
30 |
28/40KHz or 40/80KHz or 40/80/120KHz |
600 |
500 |
500X300X200 |
657X450X475 |
17 |
