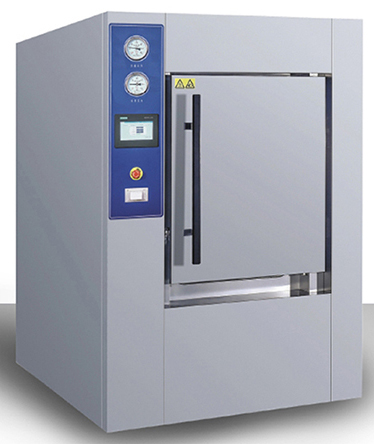

The pure steam pulsating vacuum sterilizer uses saturated steam as the sterilization medium, allowing the saturated steam to completely penetrate the surface of the object, it uses high-temperature saturated steam under high pressure to kill all microorganisms and their spores, and the sterilization effect is reliable. The dual air intake system can effectively reduce pure water consumption while achieving extremely high steam saturation.



The sterilizer can be widely used in biopharmaceutical, medical and health, laboratory animals and other fields, for sterilization and drying requirements of high equipment, aseptic clothing, tubular instruments, rubber, liquid, waste and other items sterilization treatment.

The details are as follows

• Porous load: Fabrics, sterile gowns, wrapping equipment, filters, rubber, etc.

• Hard load: Tools, Luminal instrument, glassware, metal containers, etc.

• Liquid load: Non-sealed liquids such as culture media

• Motorized door, (removable) tooth meshing seal structure, motor chain drive door up and down.

• Double door channel type, with pressure safety interlock, liquid program with temperature door safety interlock, double door interlock.

• Inflatable pressure driven sealing ring to achieve automatic sealing, the new high quality high tear resistance silicone rubber material circular hollow door sealing ring, the surface of special coating treatment, wear-resistant smooth, with better sealing effect and longer service life, life up to 1500 cycles.

• Main structure is rectangular section, European ring reinforcement jacket without flange structure, sealing groove is directly welded on both ends of the ring jacket.

• Control system: Siemens programmable controller PLC and color touch screen, the whole process automatic program control, automatic display of running process state, running curve and temperature, pressure, time and other parameters.

• Intelligent maintenance system :(optional) equipped with a remote monitoring and maintenance module, you can remotely monitor the device running on a PC or mobile phone and upgrade software.

• Has sterilization procedures for fabric, instrument, cavity instrument, rubber, liquid, custom and BD test, vacuum leakage test and other test procedures.

• Pulsation mode: adopt negative pressure pulsation, cross pressure pulsation and positive pressure pulsation modes, the air removal capacity is greater than 99.99%, save steam consumption, improve steam sterilization and drying effect.

• Flash vacuum drying technology, fabric dryness is less than 0.6%, instrument dryness is less than 0.1%

• Prints process data in real time via a built-in printer, and pharmaceutical customers are equipped with a paperless recorder.

• Pipeline system: stainless steel sanitary pipeline, clamp connection, welding seam all adopt automatic pipe welder welding; The main control valves are imported German Angle seat valve and solenoid valve, German NASH direct water ring vacuum pump.

• Supply system detection and alarm system: equipped with steam, water, power phase sequence detection and alarm device, once the supply system does not meet the operating conditions of equipment, automatic alarm, and forbid the program to start and terminate the program operation.

• According to the principle, the inner chamber jacketed double inlet, allowing pure steam into the inner chamber and industrial steam into the jacket

• With automatic drainage temperature adjustment system, drainage temperature <60℃.



• Chamber design pressure:      -0.1/0.3MPa                                 • Accuracy of temperature:        0.1℃

• Jacket design pressure:        0.3MPa                                           • Accuracy of pressure:          0.1KPa

• Generator design pressure:      1.0 MPa                                      • Sterilization temperature control accuracy:    ±1℃

• Design temperature:         150℃                                                  • Temperature uniformity:         ±1℃

• Maximum operating temperature:        139℃                              • Negative pressure pulse vacuum:        -80 ~0KPa

• Maximum operating pressure:         0.25MPa                              • Across the pressure pulsation:      -80~80KPa

• Chamber relief valve:       0.28MPa                                             • Positive pressure pulse:         0 ~ 9 times

• Jacket relief valve :        0.28 MPa                                               • Maximum vacuum:          -96 KPa



Model	Volume (L)	Chamber size	Overall Size	Weight  (Kg)	Steam Consumption  (Kg/C)	Water Consumption  (Kg/C)	Power Supply
		W x H xD (mm)	Lx W x H (mm)
YF-CST-0.25	250	550x550x845	1200x1290x1850	745	16	120	380V, 50Hz, 2KW+(20KW)
YF-CST-0.3	300	550x550x1000	1350x1290x1850	820	18	140	380V, 50Hz, 2KW+(20KW)
YF-CST-0.36	360	610x610x1000	1350x1350x1850	870	20	160	380V, 50Hz, 2KW+(30KW)
YF-CST-0.45	450	652x690x1000	1350x1400x1950	965	22	180	380V, 50Hz, 2KW+(30KW)
YF-CST-0.6	600	610x910x1200	1500x1350x1900	1200	35	320	380V, 50Hz, 3.5KW+(36KW)
YF-CST-0.8	800	610x910x1500	1800x1350x1900	1350	47	400	380V, 50Hz, 3.5KW+(48KW)
YF-CST-1.0	1000	610x910x1800	2100x1350x1900	1550	55	500	380V, 50Hz, 3.5KW+(54KW)
YF-CST-1.2	1200	680x1180x1500	1800x1420x2000	1650	65	600	380V, 50Hz, 3.5KW+(72KW)
YF-CST-1.5	1500	680x1180x1850	2100x1420x2000	1850	80	750	380V, 50Hz, 4KW+(90KW)
YF-CST-2.0	2000	900x1380x1620	1970x1750x2200	2300	106	1000	380V, 50Hz, 4.5KW
YF-CST-2.5	2500	900x1380x2050	2350x1750x2200	2700	132	1250	380V, 50Hz, 6KW
YF-CST-3.0	3000	900x1380x2420	2750x1750x2200	3500	160	1500	380V, 50Hz, 8KW
YF-CST-4.0	4000	900x1380x3250	3550x1850x2200	4500	190	1750	380V, 50Hz, 8KW
