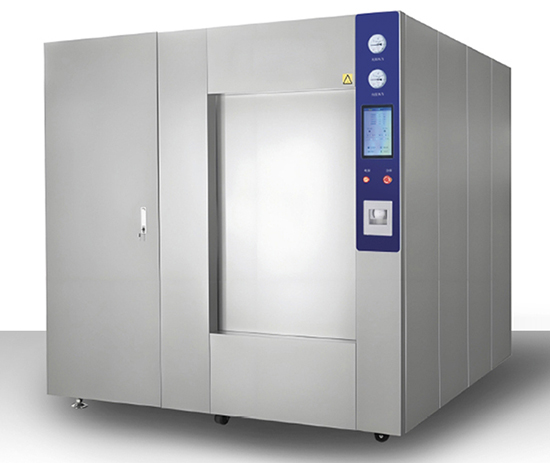

This series pulse vacuum sterilizer uses saturated steam as sterilizing medium, through pulse vacuum, the saturated steam can penetrate to the surface of the articles completely, and the high temperature saturated steam under high pressure can kill all microorganisms and their buds, the sterilizing effect is reliable, it is the most effective method in physical sterilization method. The sliding door structure does not need to reserve maintenance space.



It can be widely used in the fields of biopharmaceutical, medical and health care, laboratory animals, etc., for the sterilization of tools, sterile clothes, tubular instruments, rubber, liquid, waste and other items with high sterilization and drying requirements.

The details are as follows

• Porous load: Fabrics, sterile gowns, wrapping equipment, filters, rubber, etc.

• Hard load: Tools, Luminal instrument, glassware, metal containers, etc.

• Liquid load: Non-sealed liquids such as culture media

• Sliding door, door horizontal sliding open and close, motor chain drive door horizontal sliding translation, no manual operation.

• Double door channel type, with pressure safety interlock, liquid program with temperature door safety interlock, double door interlock.

• Inflatable pressure driven sealing ring to achieve automatic sealing, the new high quality high tear resistance silicone rubber material circular hollow door sealing ring, the surface of special coating treatment, wear-resistant smooth, with better sealing effect and longer service life, life up to 1500 cycles.

• Main structure is rectangular section, European ring reinforcement jacket without flange structure, sealing groove is directly welded on both ends of the ring jacket.

• Control system: Siemens programmable controller PLC and color touch screen, the whole process automatic program control, automatic display of running process state, running curve and temperature, pressure, time and other parameters.

• Intelligent maintenance system :(optional) equipped with a remote monitoring and maintenance module, you can remotely monitor the device running on a PC or mobile phone and upgrade software.

• Has sterilization procedures for fabric, instrument, cavity instrument, rubber, liquid, custom and BD test, vacuum leakage test and other test procedures.

• Pulsation mode: adopt negative pressure pulsation, cross pressure pulsation and positive pressure pulsation modes, the air removal capacity is greater than 99.99%, save steam consumption, improve steam sterilization and drying effect.

• Flash vacuum drying technology, fabric dryness is less than 0.6%, instrument dryness is less than 0.1%.

• Prints process data in real time via a built-in printer, and pharmaceutical customers are equipped with a paperless recorder.

• Pipeline system: stainless steel sanitary pipeline, clamp connection, welding seam all adopt automatic pipe welder welding; The main control valves are imported German Angle seat valve and solenoid valve, German NASH direct water ring vacuum pump.

• Supply system detection and alarm system: equipped with steam, water, power phase sequence detection and alarm device, once the supply system does not meet the operating conditions of equipment, automatic alarm, and forbid the program to start and terminate the program operation.

• With automatic drainage temperature adjustment system, drainage temperature <60℃.



• Chamber design pressure:      -0.1/0.3MPa                                  • Accuracy of temperature:        0.1℃

• Jacket design pressure:        0.3MPa                                            • Accuracy of pressure:          0.1KPa

• Generator design pressure:      1.0 MPa                                       • Sterilization temperature control accuracy:    ±1℃

• Design temperature:         150℃                                                 • Temperature uniformity:         ±1℃

• Maximum operating temperature:        139℃                              • Negative pressure pulse vacuum:        -80 ~0KPa

• Maximum operating pressure:         0.25MPa                               • Across the pressure pulsation:      -80~80KPa

• Chamber relief valve:       0.28MPa                                               • Positive pressure pulse:         0 ~ 9 times

• Jacket relief valve :        0.28 MPa                                                 • Maximum vacuum:          -96 KPa



Model	Volume (L)	Chamber size	Overall Size	Weight  (Kg)	Steam Consumption  (Kg/C)	Water Consumption  (Kg/C)	Power Supply
		W x H xD (mm)	Lx W x H (mm)
YF-HST-1.2	1200	680x1180x1500	2007x2110x2113	2300	65	600	380V, 50Hz, 3.5KW(72KW)
YF-HST-1.5	1500	680x1180x1800	2357x2110x2113	2450	80	750	380V, 50Hz, 4KW(90KV)
YF-HST-2.0	2000	900x1380x1620	1950x2750x2200	3000	100	900	380V, 50Hz, 4.5KW
YF-HST-2.5	2500	900x1380x2020	2300x2750x2200	3600	120	1100	380V ,50Hz, 6KW
YF-HST-3.0	3000	900x1380x2400	2700x2750x2200	3800	150	1300	380V, 50Hz, 8KW
YF-HST-6.0	6000	900x1380x4800	5400x2750x2200	6600	320	2400	380V, 50Hz, 14KW
