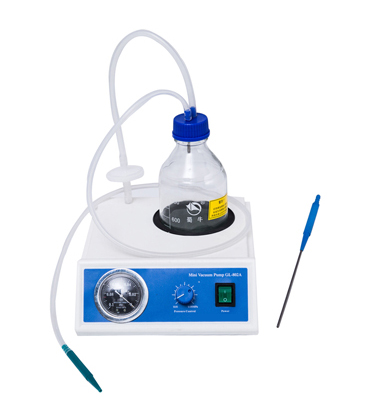

The micro desktop vacuum pump series are especially designed for sample extraction in biochemical experiments and liquid absorption and drainage in medical engineering experiments. It is widely used in the extraction of supernatant or sediment after centrifugation, the preparation of monoclonal antibodies, the exchange of the supernatant after fusion, the washing of enzyme-linked immunosorbent multi-well plates, the suction spotting in molecular hybridization experiments, and the spectrophotometry Design or biochemical analyzer for quick liquid extraction.



The liquid suction bottle adopts a standard screw cap graduated bottle, which has good sealing performance and is not easy to leak. The bottle body has an increased scale value, which can intuitively absorb liquid.



Pumping speed	6L/min
Maximum negative pressure (display on the meter head)	0.08mpa
Negative pressure adjustment	0.01-0.08mpa
Capacity of suction bottle	1000ml
Dimensions	295×240×250mm
