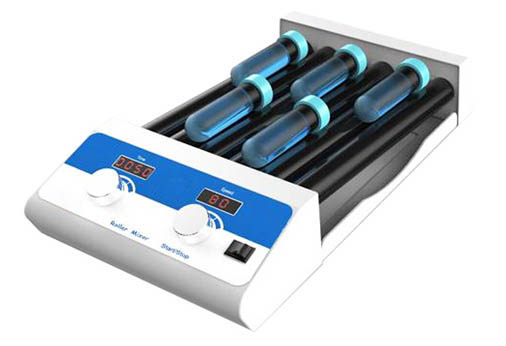

Roller Mixer
Applicable field
This roller mixer is especially suitable for mixing blood, viscous liquids and liquid-solid suspensions. It has two modes of rolling and rocking, providing efficient and safe mixing, due to the soft, but highly effective three-dimensional mixing.
It is suitable for the prevention of blood clotting. The blood sample can be free of anticoagulant without destroying blood cells.
Features
1.The appearance is exquisite, the structure is firm, and the operation is simple. The LED display shows the time and speed.
2. Two models of rolling and rocking are available, the rolling process is gentle, and the continuous long-term operation mode is safe and stable.
3. The motor has stable performance, adjustable speed, up to 80rpm, low noise and long service life.
4. It can be used in test tubes of 8mm-200mm with a wide range of applications.
5. Each time the mixer rotates one round, the right side of each roller will tilt up a certain distance, and then return to the horizontal position. This rising/falling movement will give extra force to the sample, thereby ensuring complete mixing of the sample.
6. It can be used in a 4¡æ cold room or an incubator with a temperature of 60¡æ and a relative humidity of 80%.
Technical Specification
| Speed |
10rpm-80rpm (LED Display) |
| Mode of operation |
Roll and swing |
| Amplitude |
25mm |
| Number of rollers |
6 pieces |
| Roller length |
280mm |
| Maximum load |
4.2kg |
| Timing range |
1min ~99h59min(LED Display) |
| Input power |
AC 100 ~230V, 50/60Hz |
| Power |
30W |
| Fuse |
250V,1A,§¶5x20 |
| Dimensions(W×D×H) |
440x238x120mm |
| Net weight |
3.8kg |
|
