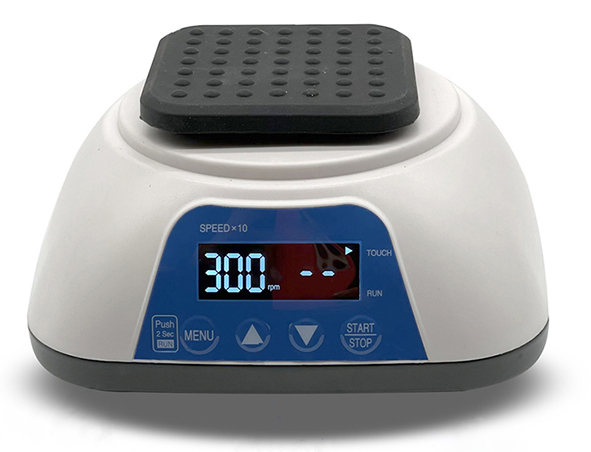

Vortex mixer
Applicable field
This vortex mixer is used in the fields of life science and physical and chemical analysis, and is used for the shaking, mixing and stirring of sample tissues, cells, bacterial liquids, chemical reagents, etc.
Quick mixing, intelligent jog, stepless speed regulation, low noise, small size, and a variety of adapters to choose from.
Technical Specification
| Operation mode |
Jog/continuous |
| Control method: |
PWM electronic speed regulation |
| Display |
LCD liquid crystal display |
| Motor type |
Brushless motor |
| Operating speed: Jog |
0-3000rpm/continuous: 100-1500rpm |
| Amplitude |
4.5MM (circular oscillation) |
| Timing/timing |
1-99min/-1-59sec |
| Power |
AC100-240V/DC24V |
| Voltage |
20W |
| Maximum sample throughput |
50ml*4/15ml*9/5-10ml*12/2ml*24 |
| Module optional |
2 kinds of modules are standard, 6 kinds of modules are optional |
| Allowable ambient temperature |
5-40℃, 80%RH |
|
