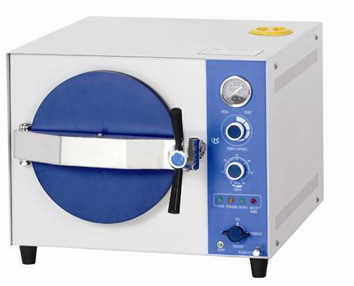

20L Tabletop Rapid Steam Sterilizer
Use
The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.
Charcteristics
¡ñ Indicator light indicates working state.
¡ñ For 4~6 minutes rapidly sterilizing.
¡ñ Sterilizing temperature and time can be preset.
¡ñ Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
¡ñ Over temperature & over pressure auto-protection.
¡ñ Safe protection of water lacking.
¡ñ Exhaust the cool air automatically.
¡ñ With three stainless steel sterilizing plates.
¡ñ The chamber of the sterilizer is made of stainless steel.
¡ñ Automatically shut off with beep reminding after sterilization.
Technical data
| Technical Data |
YF-XB20J |
YF-XB24J |
| Sterilizing chamber volume |
20L (φ250×420 mm) |
24L (φ250×520 mm) |
| Maximum working pressure |
0.22Mpa |
| Maximum working temperature |
134¡æ |
| Adjustment of temperature |
105-134¡æ |
| Timer |
0-60 min |
| Chamber temperature equal |
≤ ± 1¡æ |
| Source power |
1.5KW / AC220V 50Hz (AC110V 60Hz) |
| Sterilizing plate |
340×200×30(mm) (3 pcs) |
400×200×30(mm) (3 pcs) |
| Dimensions |
480×480×384(mm) |
580×480×384(mm) |
| Package dimensions |
700×580×500(mm) |
800×580×500(mm) |
| G. W. / N.W. |
44/40(kg) |
50/45(kg) |
|
