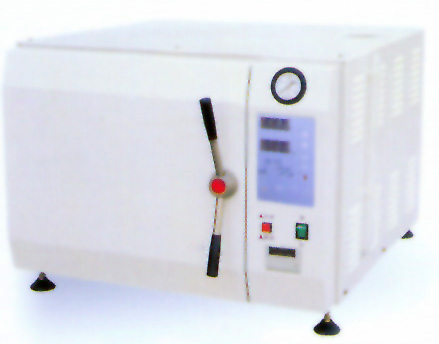

TMQ.C Series Fully Automatic Table Top Autoclaves

Application:

It is suitable to be used in sterilizing dressing, Class N Cavity devices, solid instruments, medical catheters, culture medium, and waste in the operating room, clinic department, CSSD, biological laboratories and other healthcare sectors.

Main Features:

●Microcomputer control technology, touch screen;

●Heating, sterilization, exhaust, drying the whole processes are automatically controlled by program;

●With instruments, instruments bags, dressings, rubber, liquid and other sterilization procedures for the customized optional;

●Sterilization process is dynamic curves showed, LED digital display cavity temperature, time, alarm and fault code;

●Dynamic pulse with a positive-pressure exhaust functions, completely exhausting cold air in the cavity, to ensure the steam saturation;

●Equipped with steam water inner circulation system, no external water. The environment is clean and dry;

●Beep reminding when finishing sterilization.

Safety Protection:

●Over-temperature automatic protection: Over the setting temperature, system automatically cut off power;

●Door safety interlock devices: The door is only closed in place, power can be connected to heating steam; If there is pressure inside the chamber, the door can not be opened；

●Automatic releasing pressure safety valve: Over the setting pressure, releasing valve opens to release the pressure；

●Anti-dry alarm: Below the water level, automatically cut off the heating power, and display alarm；

● Electronic circuit safety devices: AC main circuit with a short-circuit protection, over-voltage DC control circuits with overload protection.

Main Technical Parameters:

Designed Pressure: 0.28MPa

Designed Temperature: 150℃

Max. Working Pressure: 0.23MPa

Temperature Selective Range: 105℃~136℃

Temperature uniformity: ㄑ±0.5℃

Chamber Material: SUS304 stainless steel

Temperature Precision: ±0.1℃
